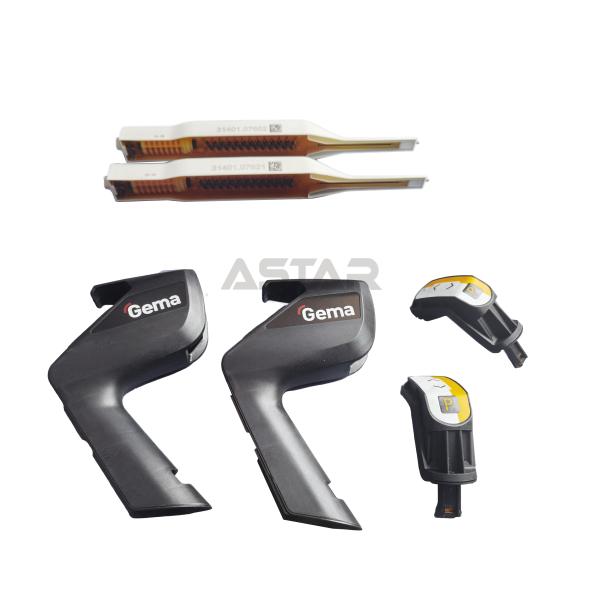

Pro GM04 gun Spare Part rear part gm04 cascade print holder
Introduction

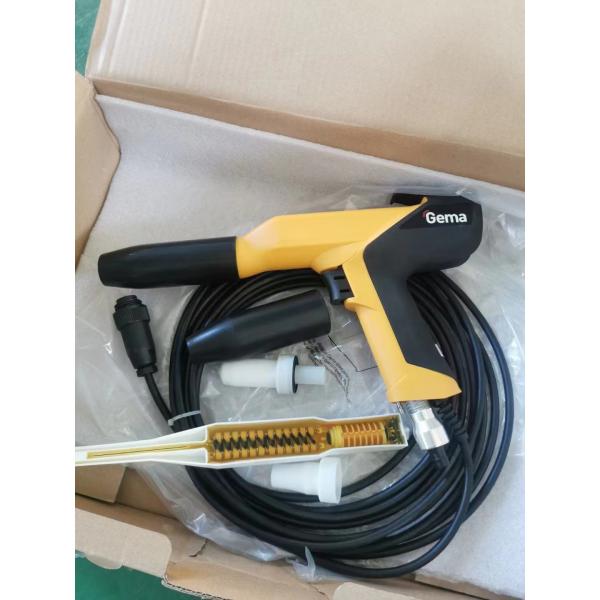

We supply all kinds of spare parts for Pro GM04 gun, such as gun shell, cascade, sleeve, nozzle, electrode, cable etc.
The spare parts that in stock are as following:
1 Gun body – complete 1017 680
2 Cascade – complete, negative polarity, incl. pos. 3 1016 911
Cascade – complete, positive polarity, incl. pos. 3 1016 912
3 Buffer 1017 704
4 Print holder – complete 1017 690
5 Rear part 1017 683
6 Trigger – complete 1017 686
7 Trigger cover 1017 688
8 Countersunk-head screw – M4x6 mm 1017 698
9 SuperCorona connection 1017 684
10 Gun cable 6 m – complete 1016 952
Gun cable 12 m – complete 1016 953
11 Rinsing air connection 1017 656
11.1 Rinsing air hose 100 854*
12 Powder tube – complete 1007 958 #
13 Compression spring 1001 488
14 Clip ring 1007 960
15 Hose connection Ø 11-12 mm – complete (incl. pos 15.1) 1001 340 #
Hose connection Ø 9-10 mm – complete (incl. pos 15.1) 1002 030 #
15.1 O-ring for pos. 15 1000 822 #
16 Threaded sleeve (see corresponding spare parts list)
17 Nozzle (see corresponding spare parts list)
18 Cable lock 1017 685
19 Screw – M3x20 mm 1017 674
20 Contact strip 1018 707
21 Fitting bush 1018 708
Quick Details
| Name | GM04 spare parts | Part number | 1016971 |
| Quality | Same as original | Feature | Original compatible |
| Spare parts | gun shell, rear part, print holder, cascade | Advantage | A class quality and original compatible |
| Application | Pro GM04 gun | Outlook | Same as original |
| Function | To repair the GM02 gun | Group | GM04 Spare Parts |
Advantages and selling points
1. A class top quality in material and production
2. Durable and long working life
3. Standard dimension
4. Enough stock
5. Fast delivery
Package
Cartoon package
Company introduction
Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, Hv cable, reciprocator, spraying room, control cabinet, oven, oven, vibration sieve, the wind leaching room.
